grommets and EYELET ATTACHING pneumatic MACHINE
Best Eyelet Machine CS-TIDY-41 for attaching Eyelets with ease and accuracy.
The CS-TIDY-41 is an excellent machine that attaches our
self piercing quality eyelets and grommets perfectly.
The CS-Tidy-41 has a variety of attachments like foot pedal, left hand or right hand
even the top "action" button to suit different comfort needs of the operator.

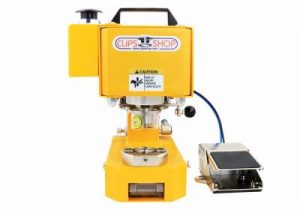

Grommet and eyelet machine CS-TIDY-41FB
The Tidy 41 is lightest pneumatic grommet eyelet attaching machine. It weighs only 7kg/15 lb with built-in carrying handle and a wide range of add-ons. Use add-ons like the Grommet Sniper, Foot Pedal and Movable Table for easy attaching of grommets.
The CS-Tidy-41 is an affordable machine that works on no electricity but an air pump inlet. It conforms with CE/OSHA requirements.
CS TIDY GROMMET MACHINE COMES IN 4 DIFFERENT VERSIONS.
There are four versions of CS-TIDY-41. The built-in manual trigger mechanism (included in all versions), The top-mounted pneumatic button, or the pneumatic foot pedal version for your specific project.
All controls can be set up for right-handed or left-handed operation that best fit your project . Each model works with standard air pump and needs no electricity.
CS TIDY GROMMET MACHINE ACCESSORIES.

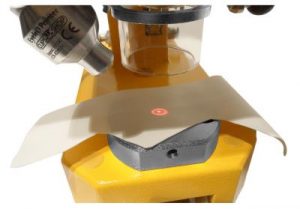

All TIDY Machines are Compatible with the Clips Shop EyeleD Pointer™ Accessory. It is the next generation LED version of the traditional laser pointers because it shows the operator the exact attaching point.

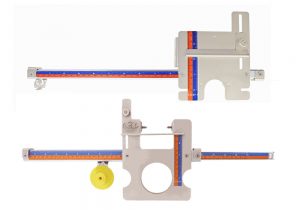

The EyeleD Pointer accessory works well on either battery or electricity. It is also compatible with the ClipsShop GrommetSniper™ for alignment and consistent placement of grommets.

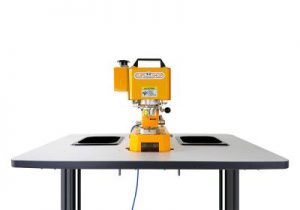

For convenience you can mount the CS Tidy on its specially-designed mobile cart or adjustable table with ease.
All ClipsShop die sets like the self piercing, self cleaning and 2 step dies are interchangeable with the CS Tidy 41.
CS TIDY GROMMET MACHINE WORKS ON DIFFERENT TYPES OF MATERIALS
The CS-TIDY-41 allows you to work on many types of materials that require attachment of grommets.
Materials like vinyl, corrugated plastic, chipboard, industrial textiles, fabric, poster board, and many other substrates. With a quick change of the die set you can punch and attach different sorts of grommets for all the above materials.
The CS-TIDY-41 comes with an instruction manual that guides you to set up the TIDY in a few minutes.
TECHNICAL DATA | ||
Throat Depth From the Center | 100 mm | 4’’ |
Net Weight | 7 kg | 15 lb |
Gross Weight | 7.5 kg | 16.5 lb |
Dimensions (Height × Width × Depth): | 285 × 120 × 247 mm | 11 1/4’’× 4 3/4’’ × 9 3/4’’ |

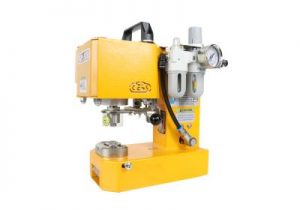

Compatible Accessories | Mobile Cart Adjustable Table Filter-Regulator-Lubricator (FRL) Accessory EyeleD Pointer (CSEDP-01) GrommetSniper™ Large GrommetSniper™ | |
Compatible Dies | TIDY Self-Cleaning Die Sets Self-Piercing Die Sets (All sizes) Two-Step-Die Sets (All sizes) | |
Applicable Grommet Sizes | #XX00 – #12EA |
